Introduction
The GE LM6000 is a highly efficient aero derivative gas turbine widely used in power generation and industrial applications. Known for its rapid startup and operational flexibility, it relies heavily on advanced control systems to maintain performance and safety. A key component of these control systems is the I/O (Input/Output) processor card, which facilitates communication between field devices and the turbine controller. When issues arise with these cards, prompt and effective troubleshooting becomes critical to avoid downtime.
Role of I/O Processor Cards in LM6000 Systems

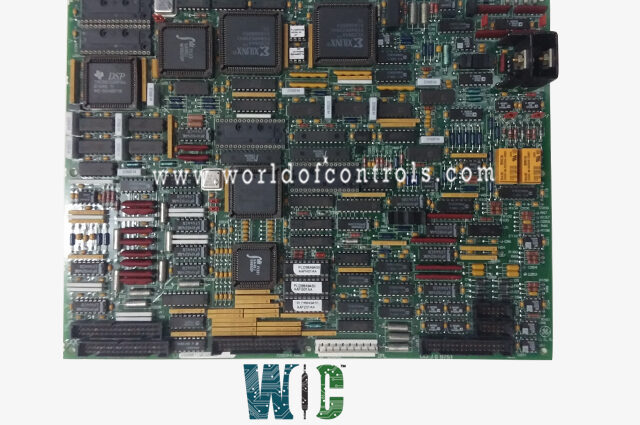

I/O processor cards act as the interface between the turbine’s physical instrumentation and its digital control system. They collect input signals from sensors—such as temperature, pressure, and vibration monitors—and convert them into data the control system can process. In turn, they transmit output commands to actuators that regulate turbine functions.
These cards are essential for ensuring real-time monitoring and precise control. Any disruption in their performance can lead to inaccurate readings, delayed responses, or even system shutdowns, impacting overall turbine efficiency and reliability.
Common Issues with I/O Processor Cards
Several factors can contribute to failures or malfunctions in I/O processor cards:
- Electrical Problems: Power surges, voltage instability, or short circuits can damage internal circuitry.
- Environmental Conditions: High temperatures, humidity, and dust accumulation can degrade components over time.
- Signal Interference: Noise or poor grounding can disrupt communication between sensors and the control system.
- Hardware Degradation: Aging components may result in intermittent faults or complete failure.
Identifying these issues early helps prevent more serious operational disruptions.
Step-by-Step Troubleshooting Approach
1. Visual Inspection
Start with a thorough visual check of the card and surrounding hardware. Look for signs of overheating, burnt components, loose wiring, or corrosion. Physical damage often provides the first clue to underlying problems.
2. Verify Power Supply
Ensure the card is receiving stable and correct voltage levels. Use a multimeter or diagnostic tools to confirm that both input and output power are within specified ranges.
3. Review System Diagnostics
Modern LM6000 control systems provide detailed diagnostic data. Check system logs and error messages to pinpoint faults related to I/O communication or processing.
4. Test Signal Flow
Validate that input signals from field devices are accurate and that output signals are being transmitted correctly. Signal inconsistencies may indicate a faulty card or external interference.
5. Repair or Replace
If the issue persists, consider replacing the card with a known working unit. In some cases, cleaning connectors or reseating the card may resolve minor issues without full replacement.
Best Practices for Preventive Maintenance
To reduce the likelihood of I/O processor card failures:
- Maintain a clean, temperature-controlled environment
- Conduct routine inspections and system checks
- Ensure proper grounding and shielding of electrical systems
- Use high-quality power supplies and surge protection
- Keep spare components available for quick replacement
Implementing these practices can significantly improve system reliability and extend equipment lifespan.
Conclusion
I/O processor cards are vital to the operation of GE LM6000 systems, serving as the communication bridge between sensors, actuators, and the turbine control system. Their reliability directly impacts turbine performance and safety. By following a structured troubleshooting process and adopting preventive maintenance strategies, operators can minimize downtime and ensure consistent, efficient operation in demanding industrial environments.
